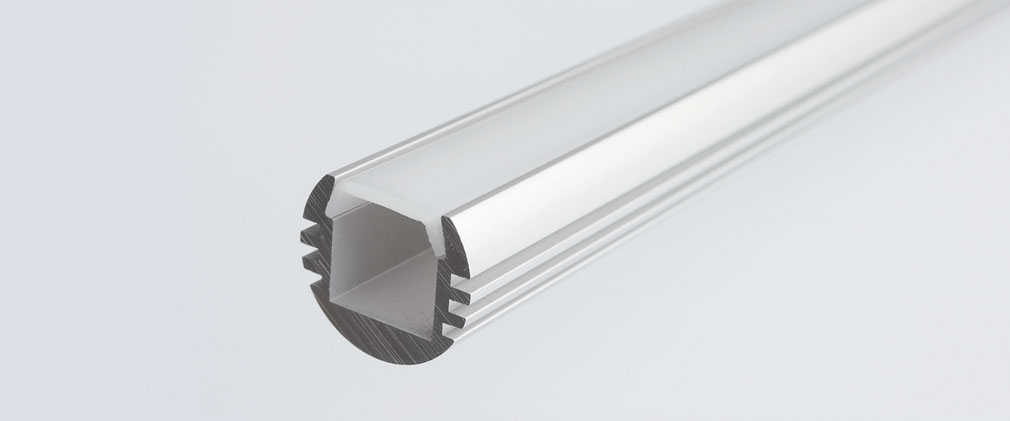

IL-XTRU-3777: 78.75 in. Anodized Aluminum Channel
SPECIFICATIONS
XTRU-3777 LED Profiles are an innovative way to create your own light fixtures with LED Tape Light. Suitable for surface mounting or recessed installation, these high quality profiles provide a unique way to make use of linear low voltage lighting and are the designer's choice for creating light fixtures for commercial and residential LED strip lighting.
The Klus XTRU-3777 Aluminum Mounting Channel is used to hold LED tape light and allows you to create your own custom LED low voltage lighting scheme.
Please note: These profiles are only compatible with LED strip light 0.5 inches wide or smaller. They are compatible with ThinGlow Standard, High Output, and RGB strip lights.
| Profile | Length | Surface Finishing | Item Number |
|---|---|---|---|
 |
1m/ 3.28ft (standard) 2m/ 6.56ft (standard) 2 - 6m/ 6.56ft - 19.685ft (special order) |
Anodized | IL-XTRU-3777 |
 |
1m Cover 2m Cover |
70% Transparent (Frosted), more rigid, perfectly flat | 1547 |
| 96% Transparent, more rigid, perfectly flat | 1548 | ||
 |
1m/ 3.28ft Cover 2m/ 6.56ft Cover |
70% Transparent (Frosted), more rigid, perfectly flat |
1369 |
| 96% Transparent, more rigid, perfectly flat | 1370 | ||
 |
1m/ 3.28ft Frosted Cover 2m/ 6.56ft Frosted Cover |
96% Transparent, light focusing cover | 00220 |
 |
|
End cap pcv | 1439 |
| End cap pcv with holes | 1441 | ||
| Electricity conductive end cap | 1435 | ||
 |
Zinc Chrome matt |
1072 1324 |
|
ACCESSORIES
Small dimensions, lightweight, modern design, environment friendly, profile enables construction of individual lamp designs for building free standing light fixtures, not recessed lighting.
Indoor and outdoor (IP 65 waterproof level can be achieved).
To build free standing lighting fixtures, to be mounted as an individual element to surfaces (walls, furniture, boards etc.), not grooves milled in surfaces.
